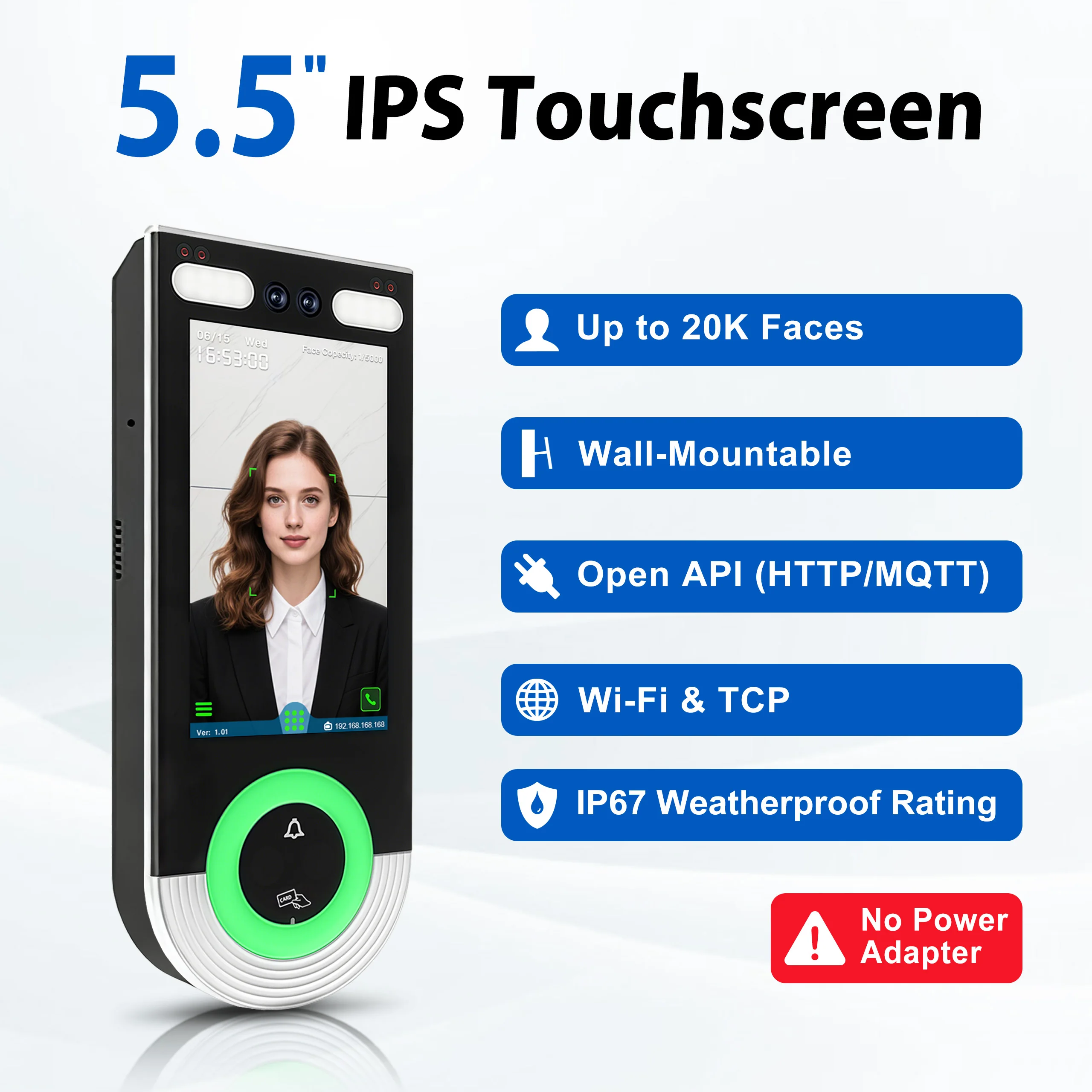

5.5-inch Aluminum Alloy Biometric Face Palm QR RFID Access Control Terminal with Video Intercom Cloud PC Software TCP/IP USB

6 reviews
100% of buyers enjoyed this product! 13 orders

Price range: 345,76 $ through 477,38 $

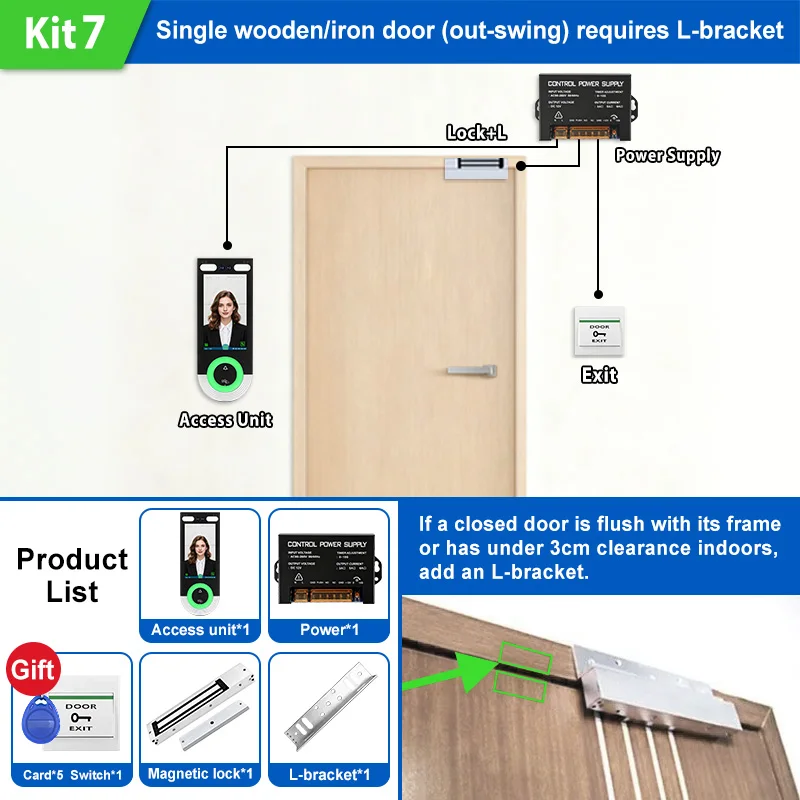

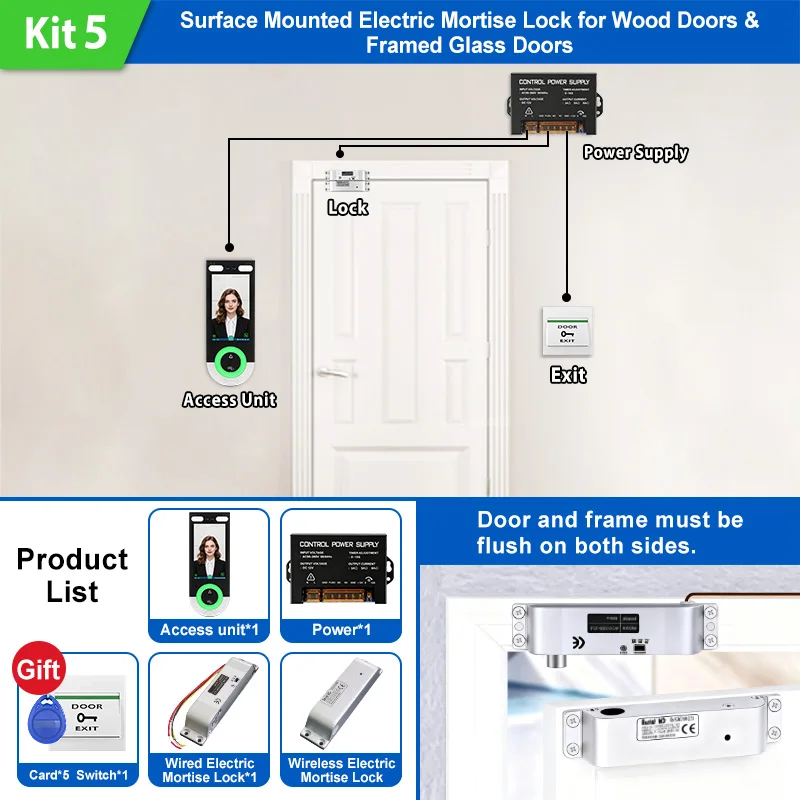

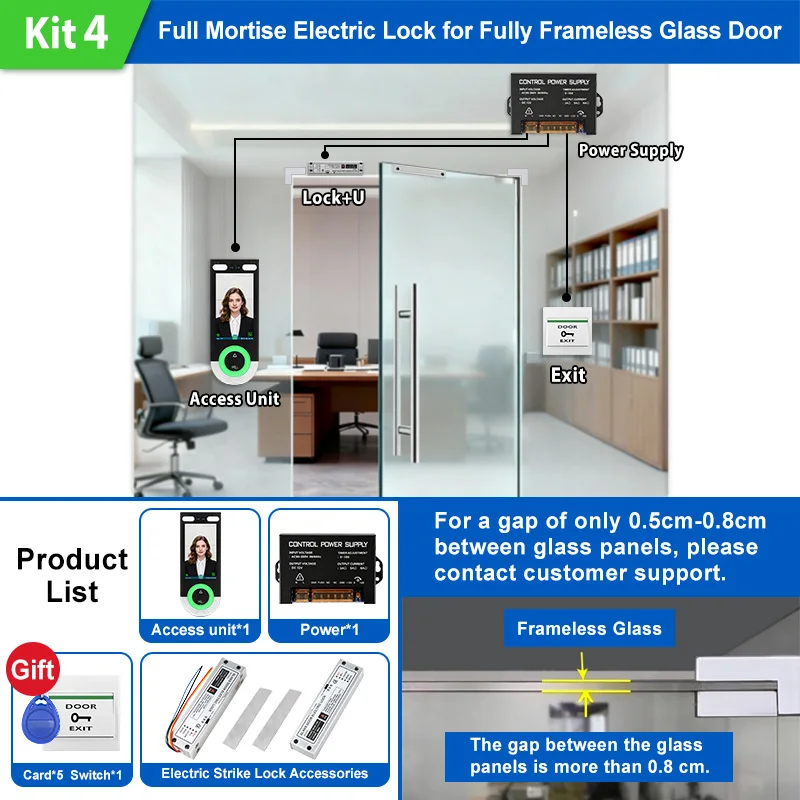

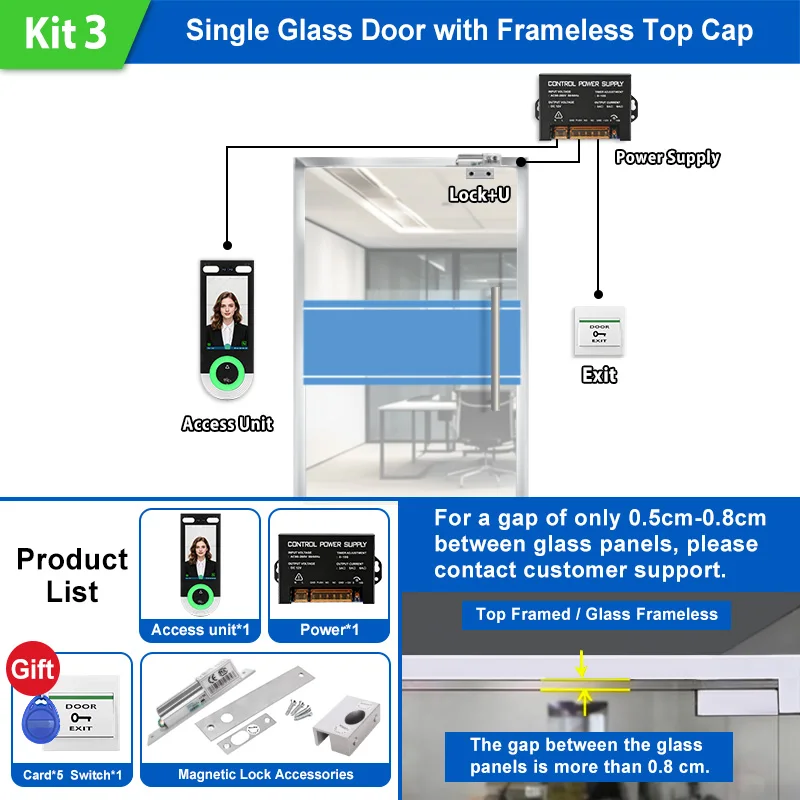

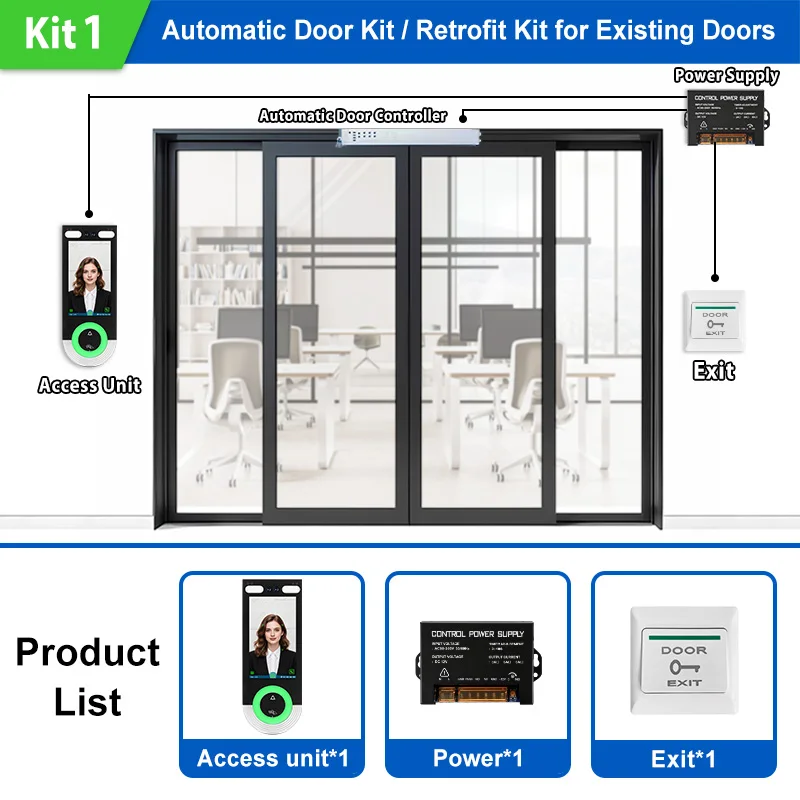

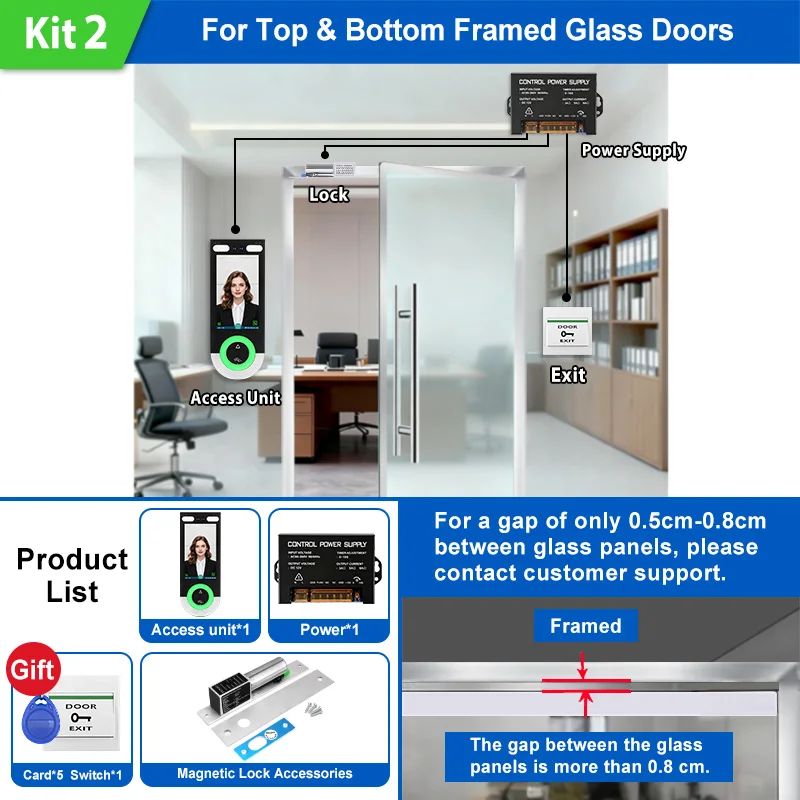

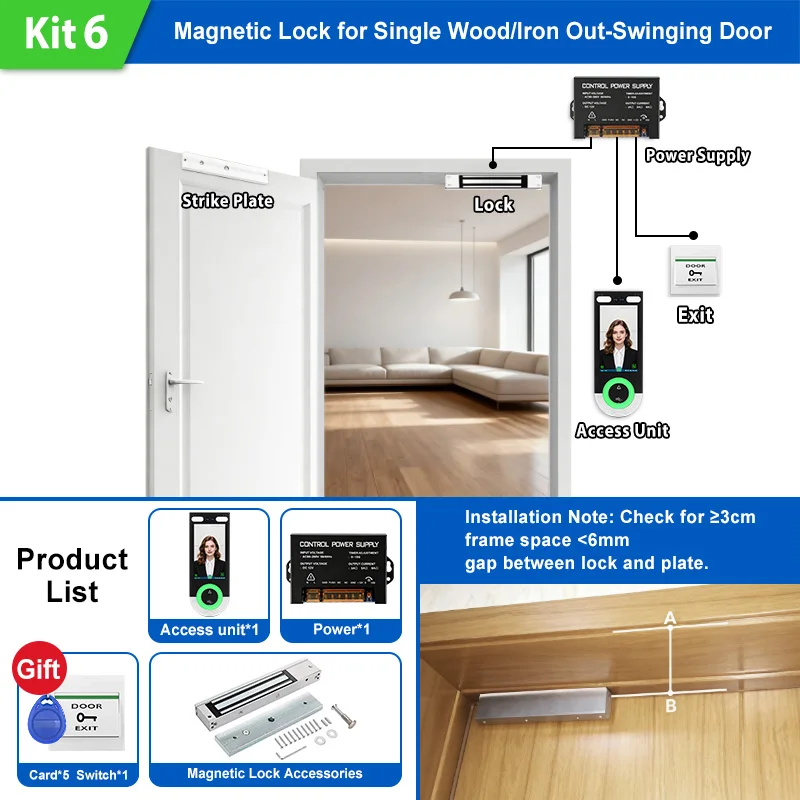

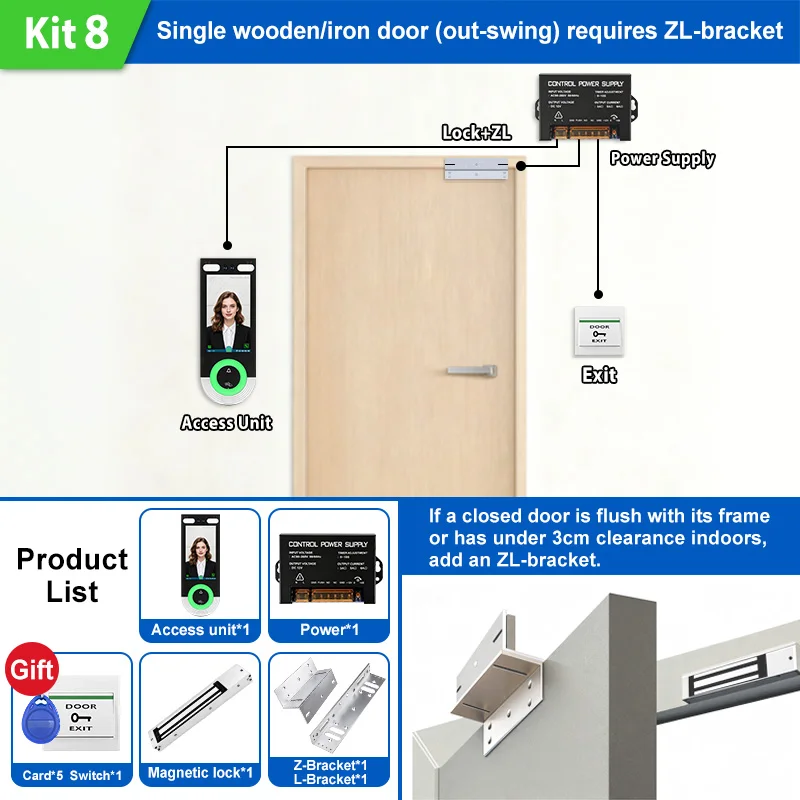

Kit 1Kit 2Kit 3Kit 4Kit 5Kit 6Kit 7Kit 8Single Device Only
Clear
SKU:
1005009542069041
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Weight 14 kg
Dimensions 8 cm
Brand Name

WITSNK

Model

8390

Power Supply

DC 12V 3A

Biometric Recognition

Other

Power Source

DC 12V 3A

Interface

USB

Dimensions

Other

High-concerned chemical

None

Fingerprint Capacity

None

Face Capacity

None

Origin

Mainland China

Logs Capacity

Other

Card Capacity

5000

Screen Size

Other

Used For

Access Control, Time Attendance, Elevator Control, Video Intercom, Cabinet Lock

User Capacity

20K Users, 20K Faces, 20K QR Codes, 20K Cards, 20K Password, 10K Palms

Record Capacity

1 Million Records, 10K Photo Records, 10K System Records

Recognition Distance

0.3m-3m(Liveness Detection>1.5m)

Working Voltage

DC12V

Working Current

<2000mA

Identification Speed

<0.3S

Working Temperature

Temperature: -30 ~ 65℃; Humidity: 10 ~ 90%, Non-condensing

Comparison

1:N/1:1

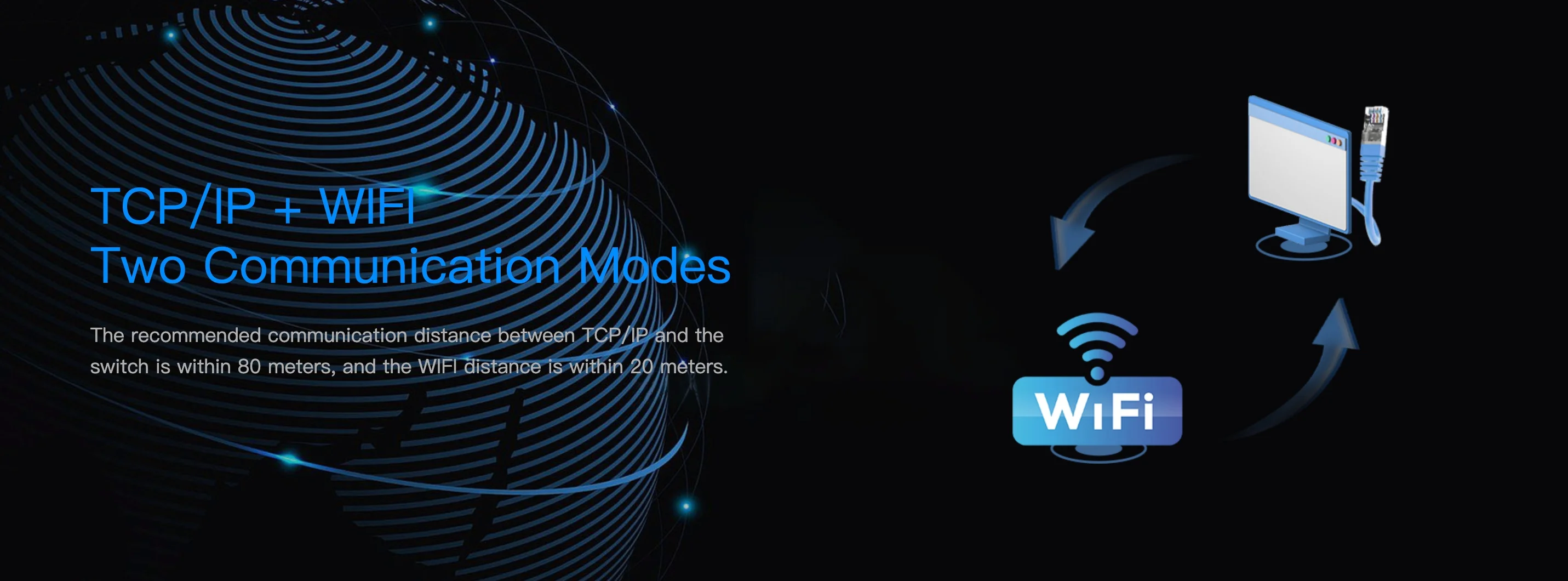

Communication

TCP/IP and WIFI

Elevator Extension

Support extension interface for elevator/cabinet lock control

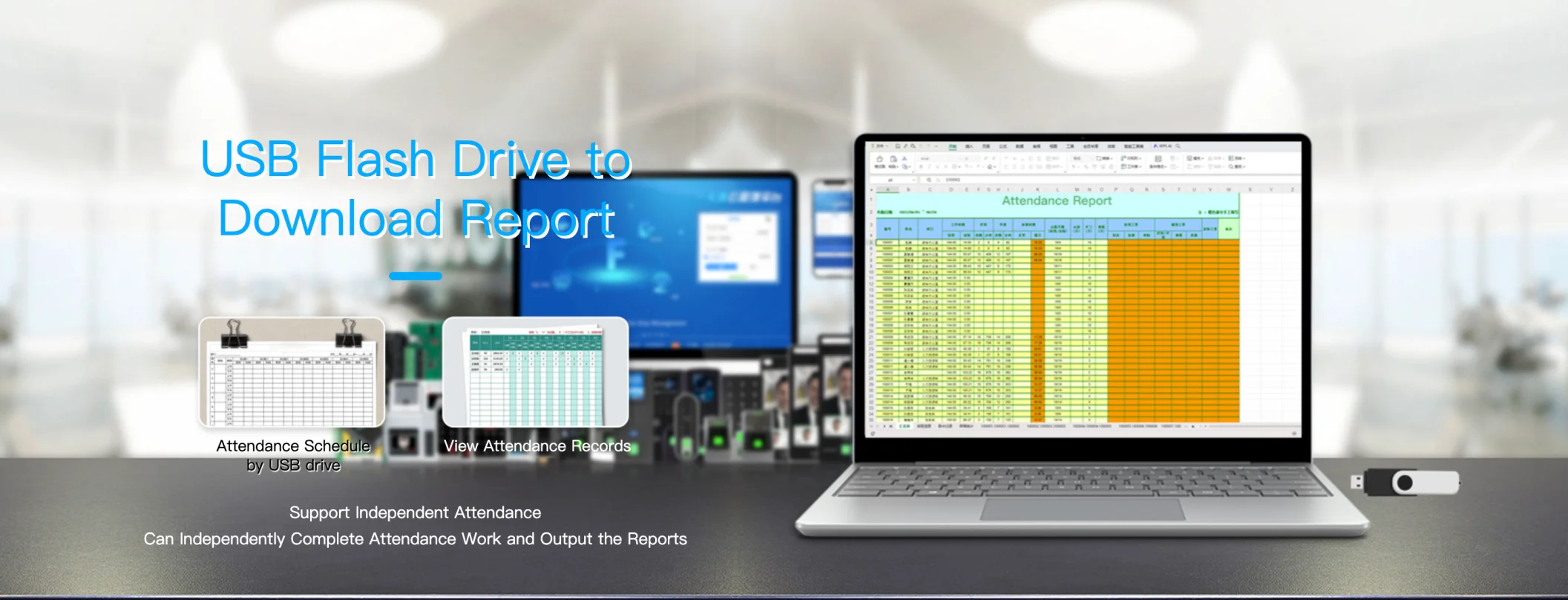

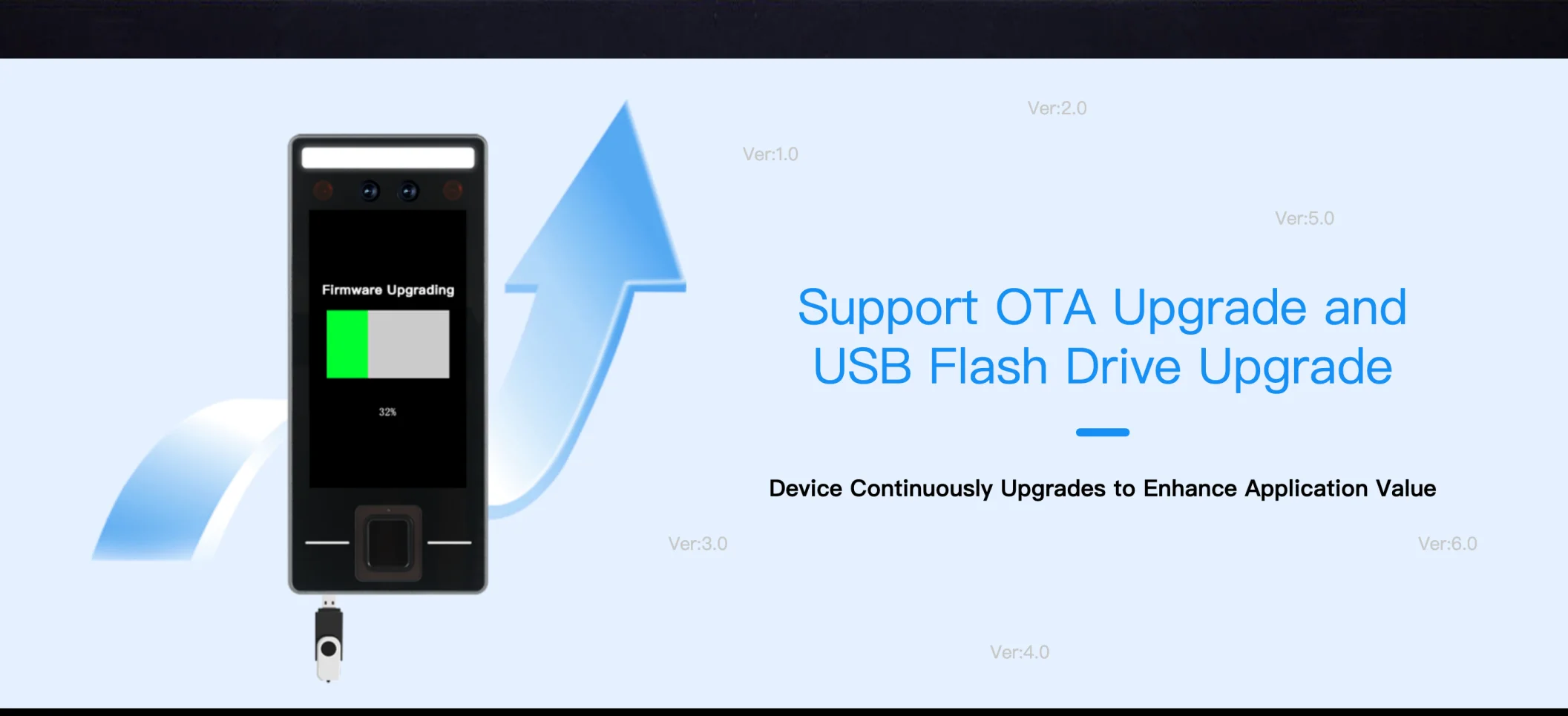

Firmware Upgrade

Support upgraded by OTA or USB pendrive

Operating System

LINUX system

Storage Capacity

256M DDR3, 8GB EMMC

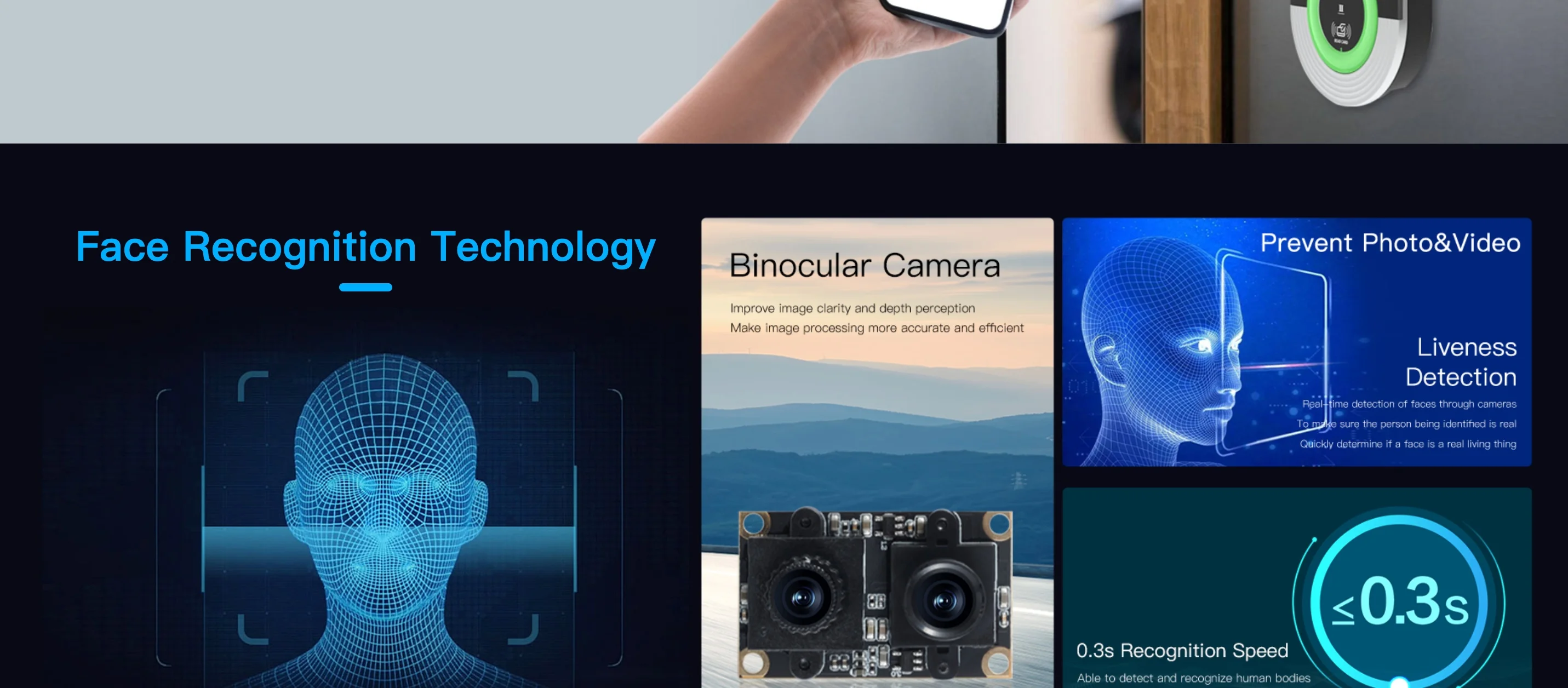

Camera

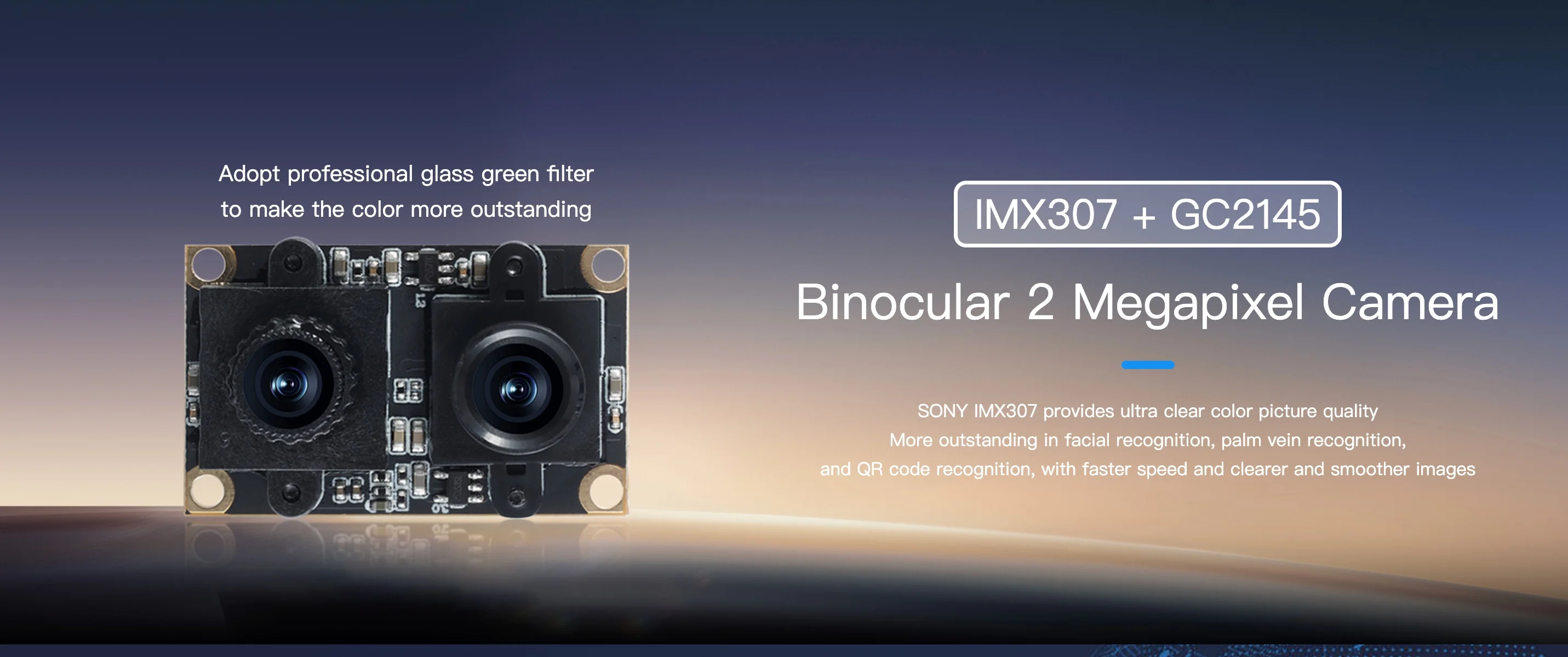

Wide Dynamic Binocular 2 megapixel HD camera

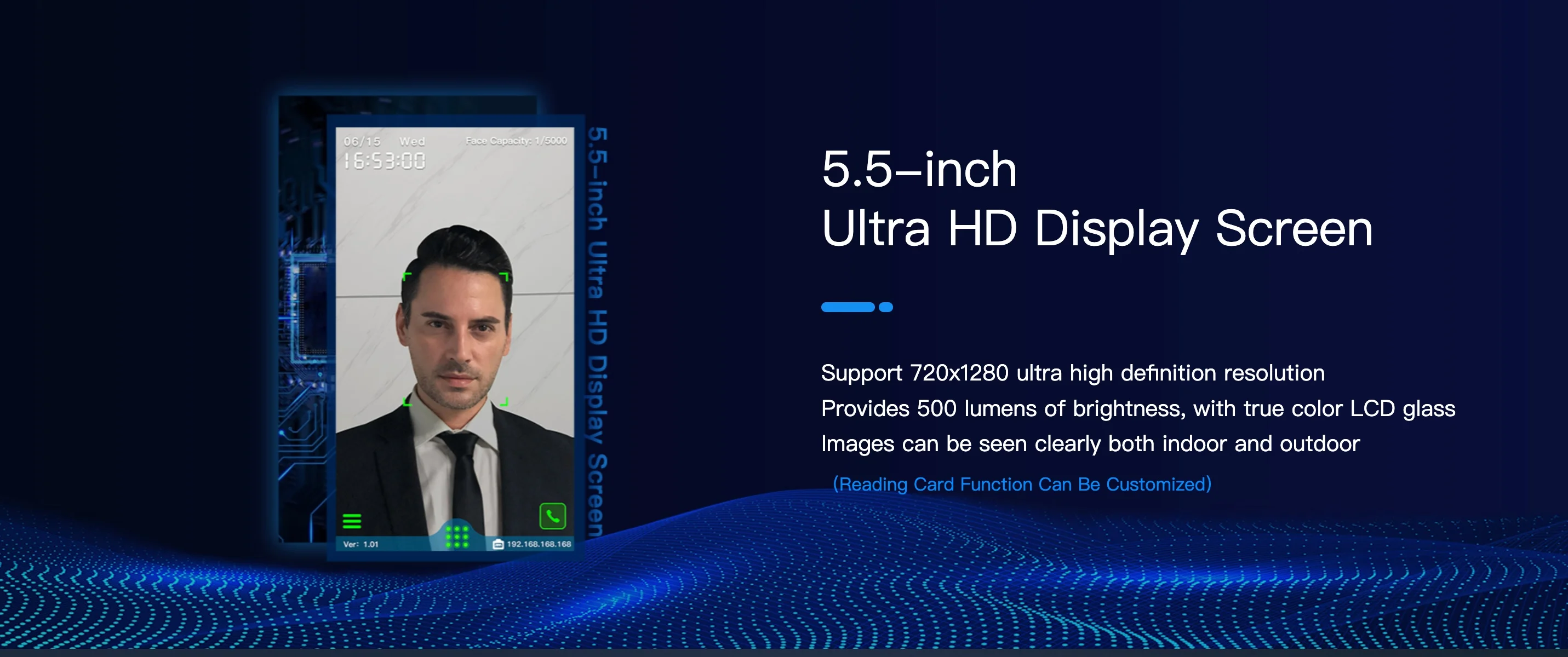

Display Screen

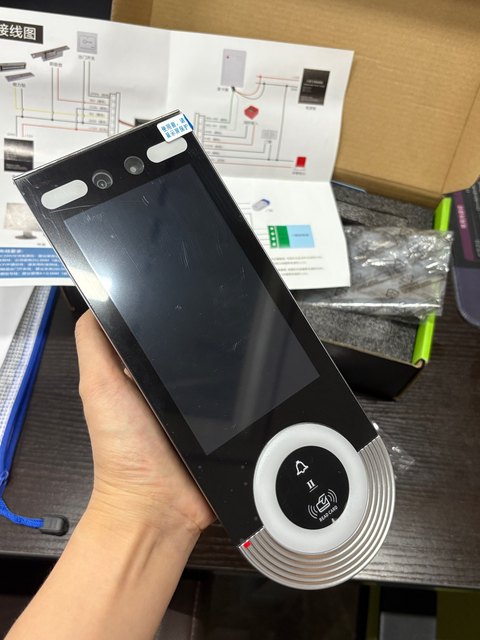

5.5-Inch IPS Full View HD Screen

Algorithm

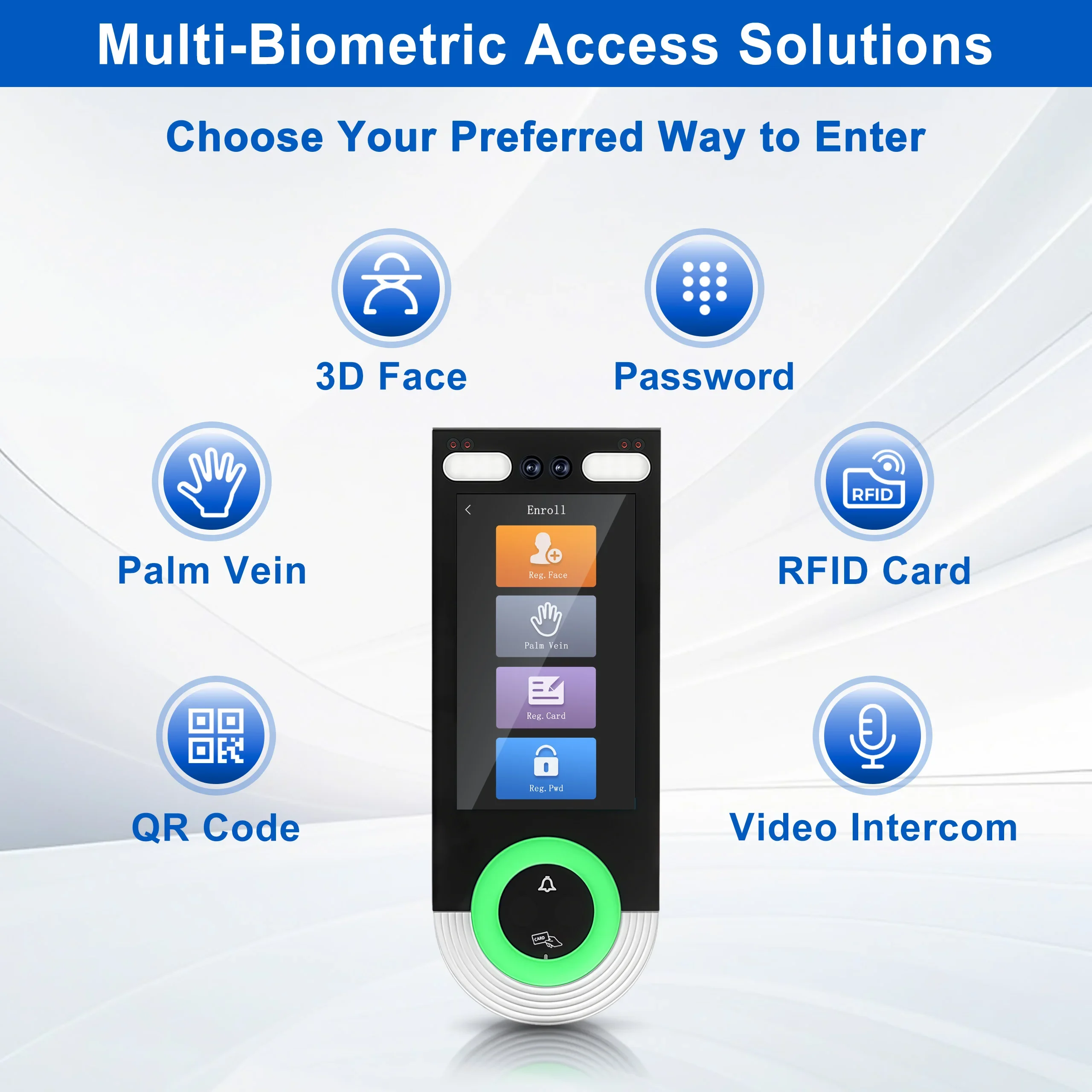

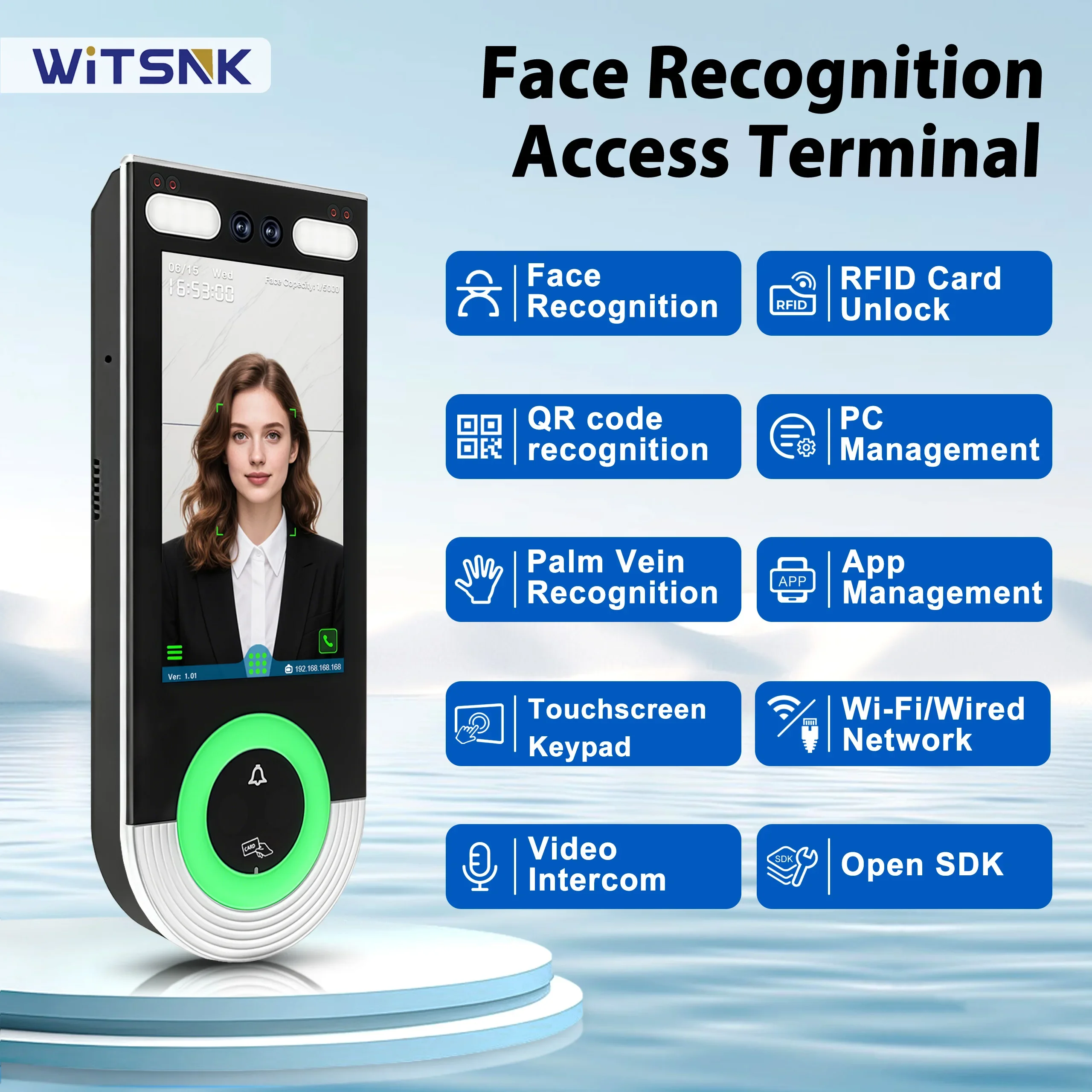

Facial Recognition, Palm Vein Recognition, QR Code Recognition

Interface Protocol

Wiegand26/34/66

Other Interfaces

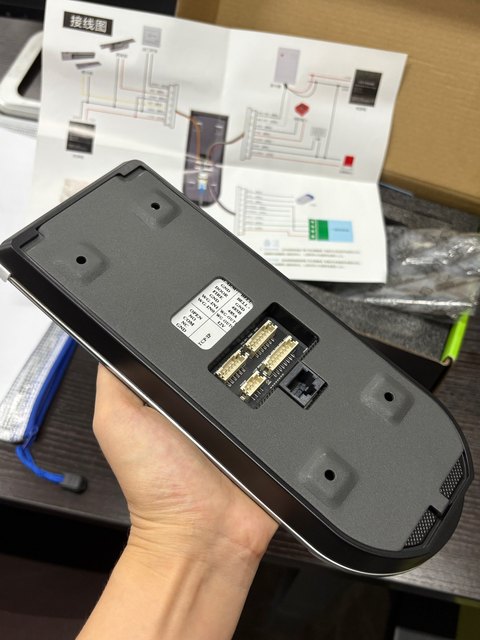

One Exit Button, One Door Sensor, One Fire Input, One Alarm Output, One Wiegand Output, One Wiegand Input , One Lock Control, One USB, One RS485

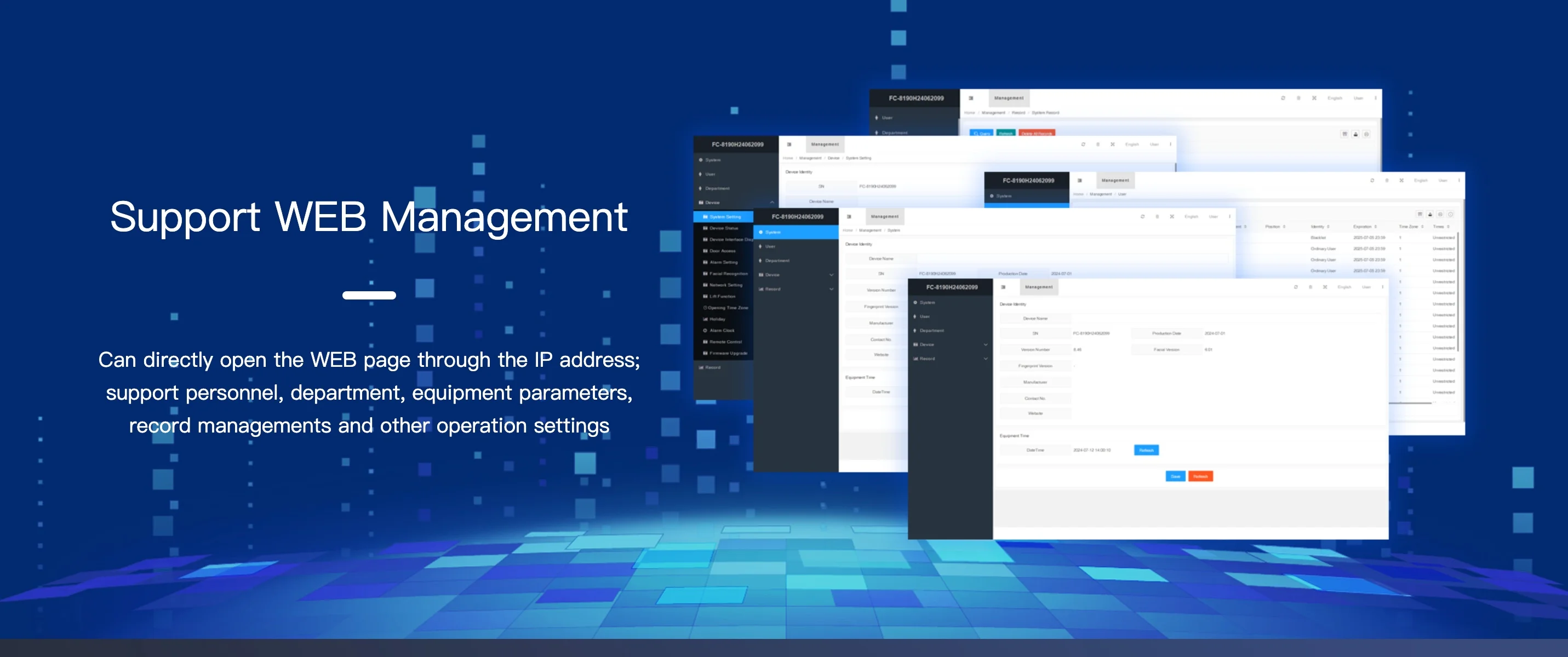

Management Mode

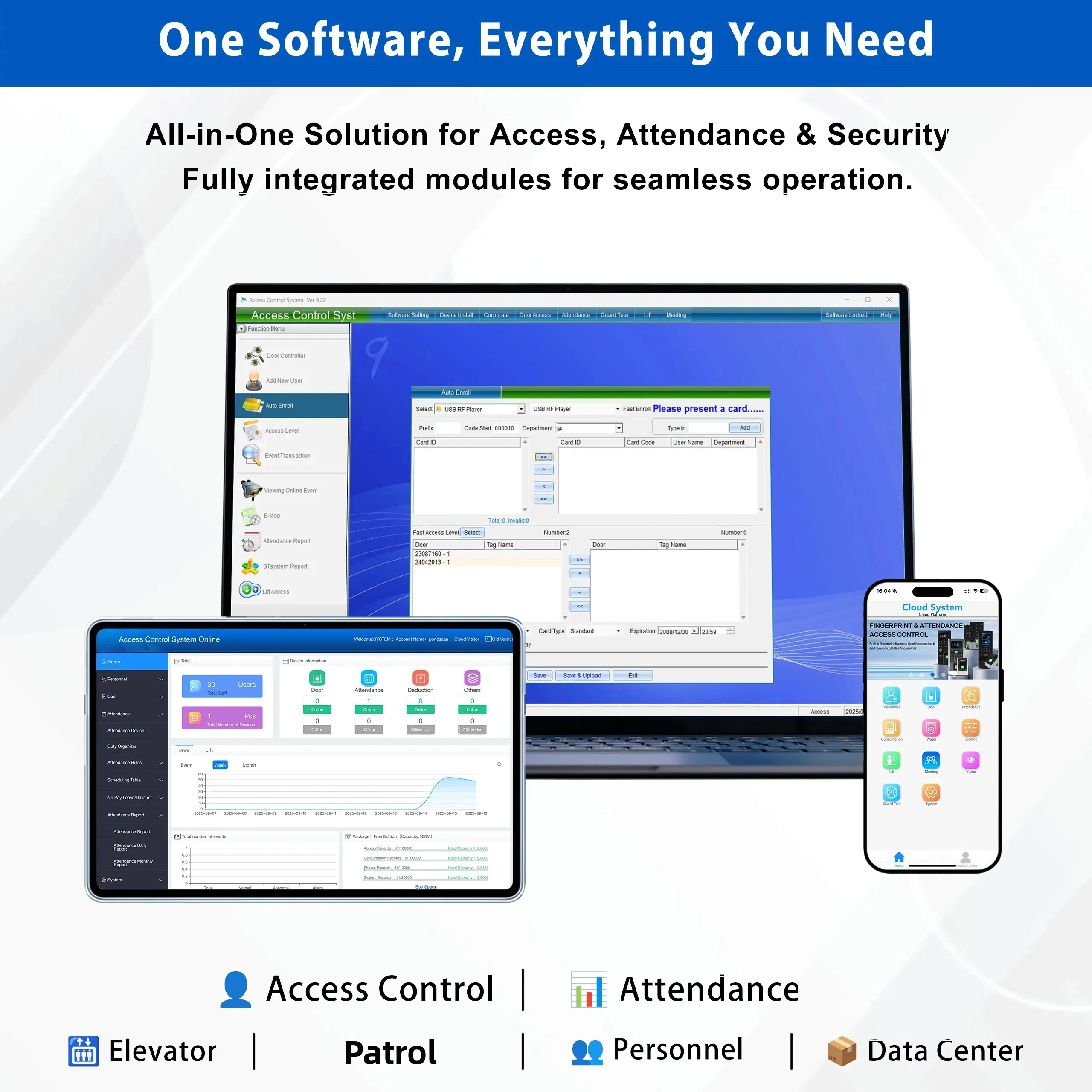

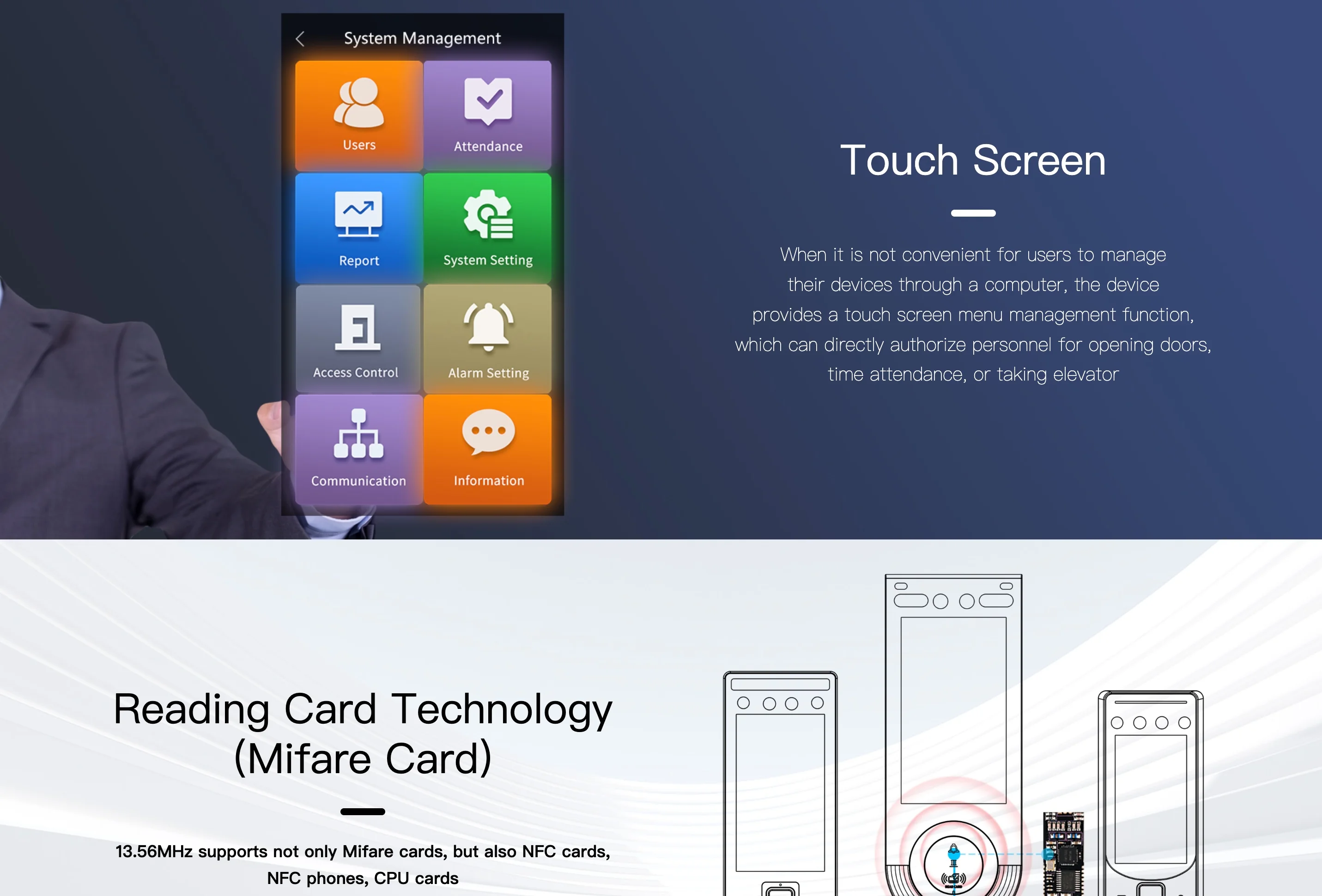

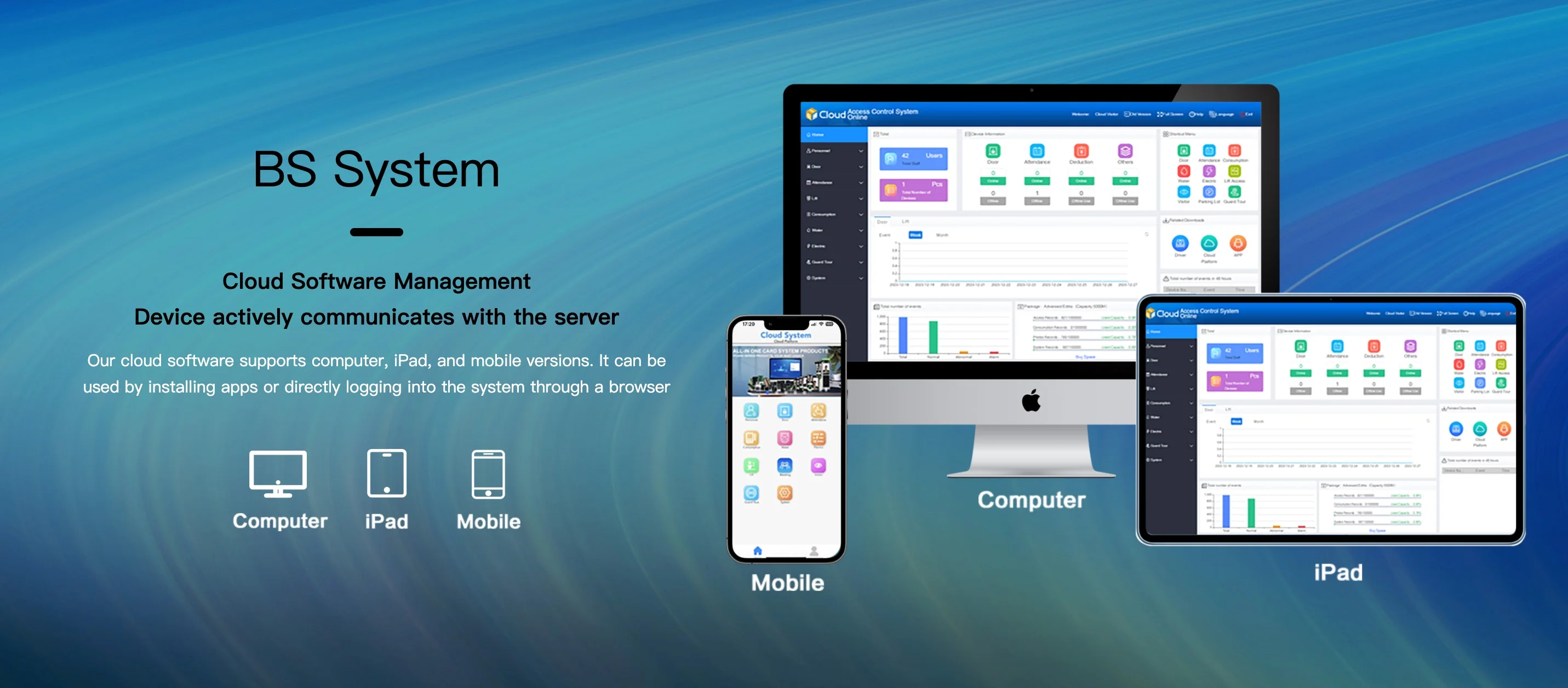

Touch Screen, CS System, BS Cloud System, Mobile App

Recognition Mode

Face, Palms, Password, Mifare Card, Dual-frequency Card Optional

Weight

0.7KG

Installation Way

Installed on wall or turnstile

Material

Metal Casing+Tempered Glass Panel

Size

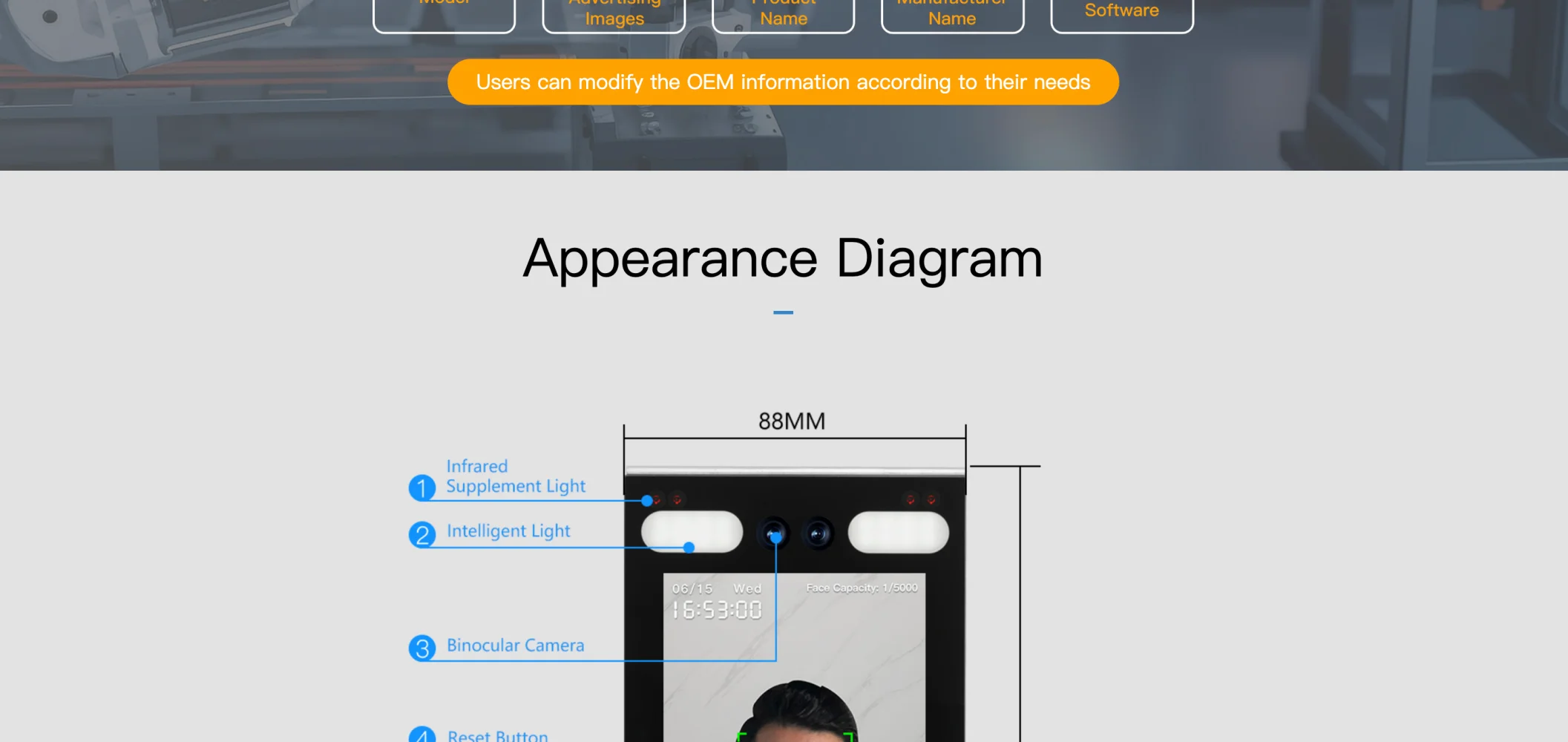

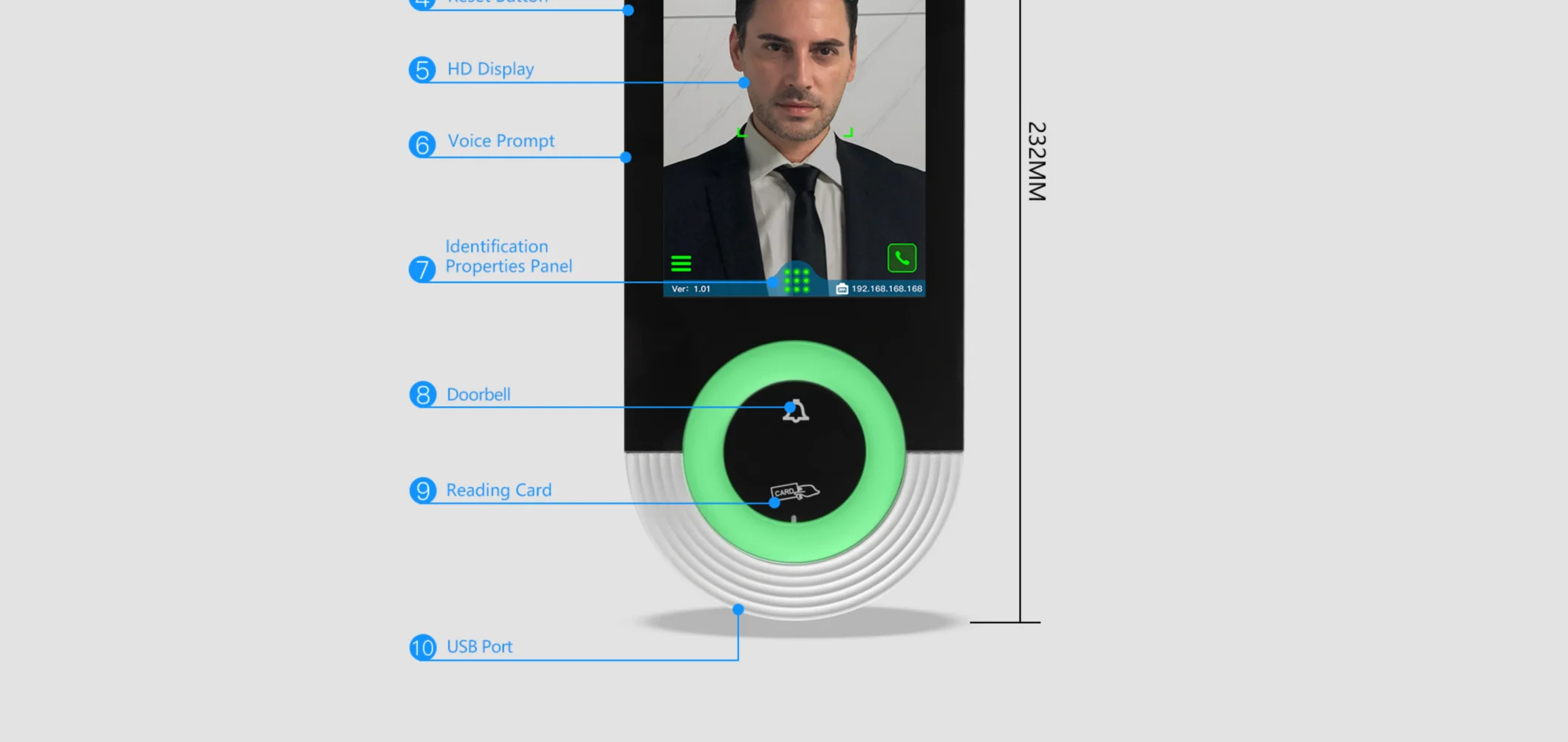

235*88*25mm

Shipping and delivery

We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
Asia 10-20 Business days
Africa 15-45 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says "no information available at the moment".

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you have specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

Refunds & returns policy

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

  • You do not receive them within the guaranteed time (45 days not including 2-5 day processing)
  • You receive the wrong item
  • You do not want the product you have received (but you must return the item at your expense and the item must be unused)

We do not issue the refund if:

  • Your order does not arrive due to factors within your control (e.g. providing the wrong shipping address)
  • Your order does not arrive due to exceptional circumstances outside our control (e.g. not cleared by customs, delayed by a natural disaster)
  • Other exceptional circumstances outside the control of shop.host4up.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on page.

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

Real customer reviews

6 reviews
100% of buyers enjoyed this product!
5 stars
( 6 )
4 stars
( 0 )
3 stars
( 0 )
2 stars
( 0 )
1 star
( 0 )
  1. r***r

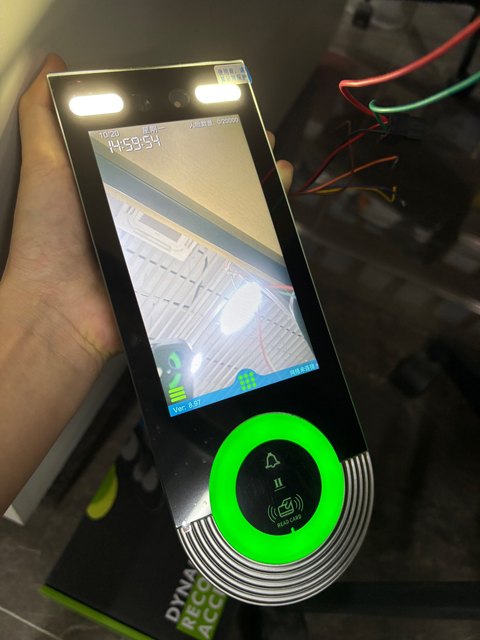

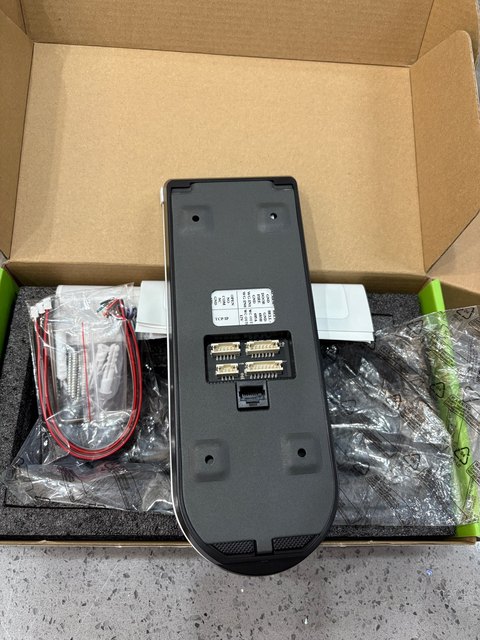

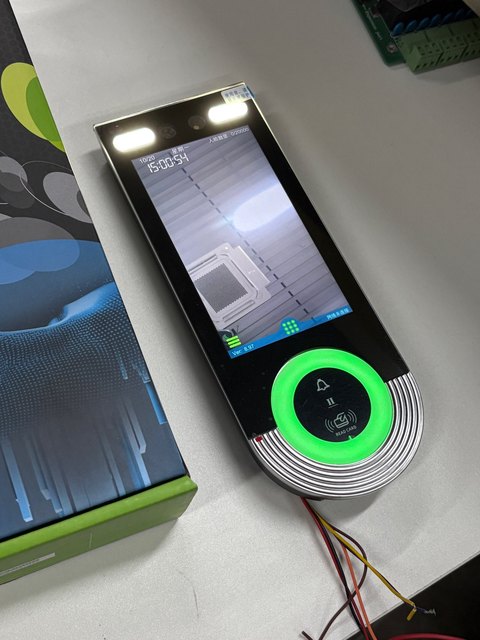

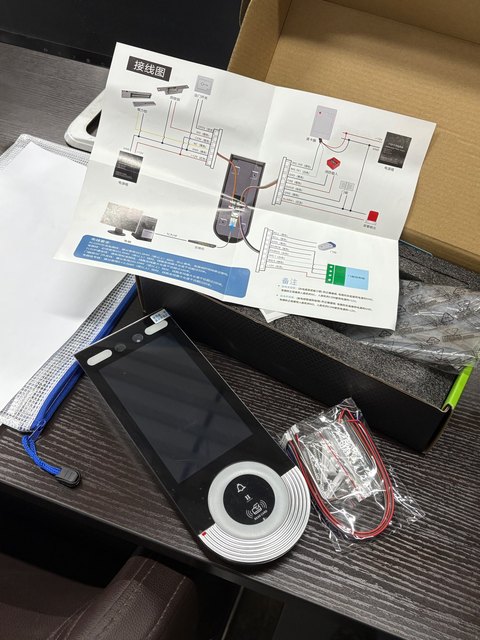

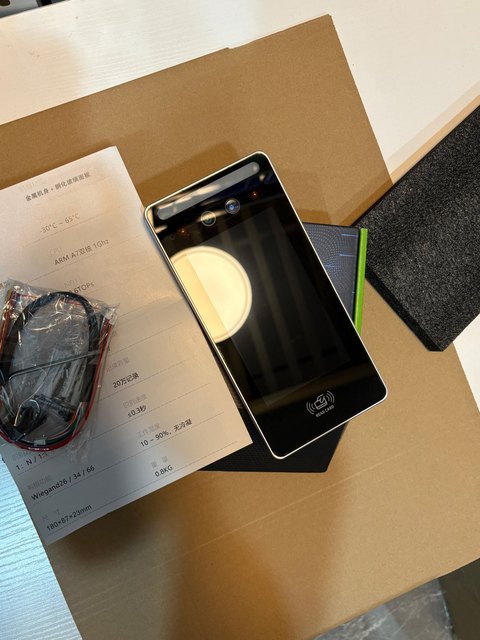

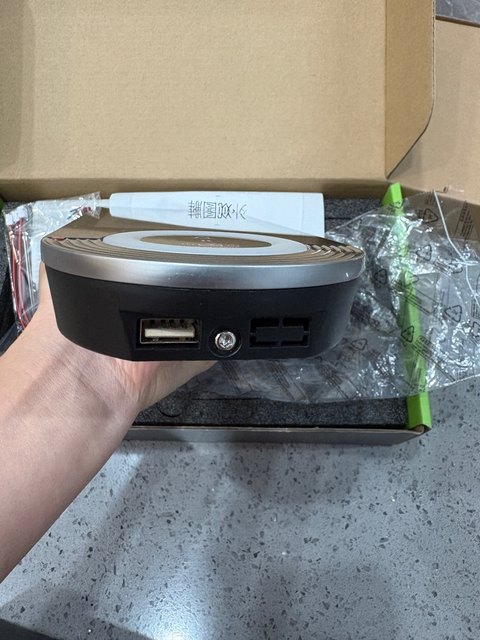

    I set up the product right after receiving it, and it feels really good. The palm vein authentication works fine even when wearing gloves, and the face recognition accurately identifies me even when I’m wearing a hat or glasses! There was a small issue during installation, but when I contacted customer service, it was resolved immediately. Their response attitude was also very good.

  2. a***r

    As a manager, this package has ticked all the boxes for our factory entrance. It handles high traffic effortlessly, and the mask-friendly recognition is a winner. The PC software for bulk management and reports has been a massive time-saver for payroll. Absolutely stoked with the value.

  3. r***r

    ¡Se ve precioso! ¡Incluso tiene iluminación RGB! La luz nocturna es muy práctica; es fácil de usar incluso en la oscuridad. El reconocimiento de venas de la palma funciona incluso con las manos mojadas. El precio es un poco elevado, pero vale la pena y tiene una gama completa de funciones.

  4. a***r

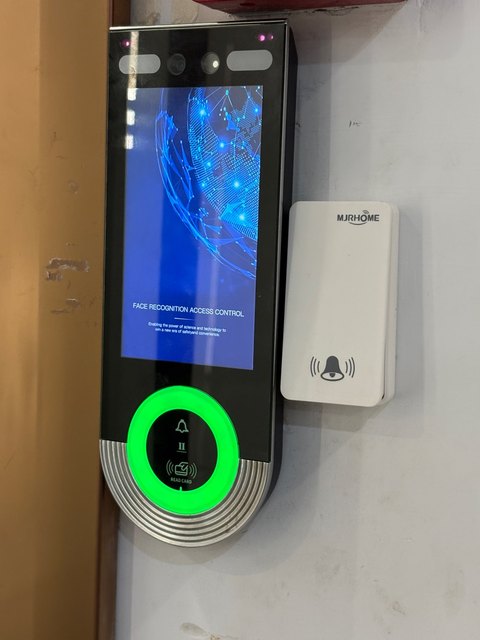

    Je l’ai installé à l’entrée de mon entreprise. C’est un excellent produit qui combine contrôle d’accès et gestion des présences ! Étonnamment, la reconnaissance faciale et palmaire s’est avérée plus rapide que prévu. La structure métallique est certes lourde, mais cela n’affecte en rien son ergonomie. Compte tenu de son rapport qualité-prix, je recommande vivement ce produit.

  5. c***r

    أنظمة التعرف المختلفة سريعة، لذا لن أضطر للقلق بشأن نسيان مفاتيحي مرة أخرى! مع ذلك، كان الشحن بطيئًا بعض الشيء بالنسبة لي. شقتي مُجددة حديثًا، وكنت أنتظر التركيب والاستخدام. كانت عملية التركيب بسيطة ومريحة، وتستحق الانتظار. اتصال الواي فاي مستقر، وهذا رائع.

  6. e***r

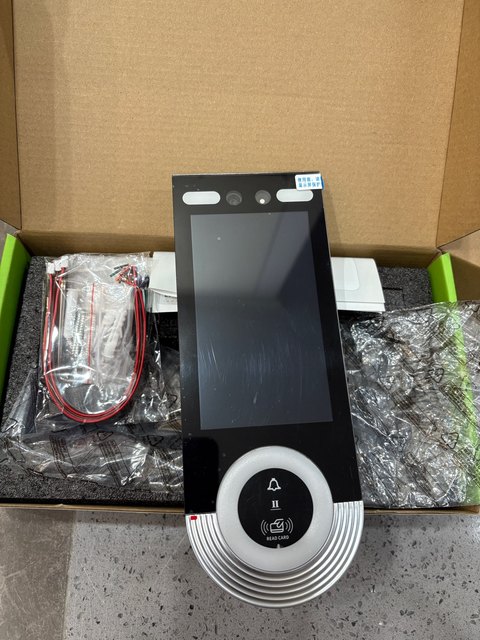

    وصل المنتج في الموعد المحدد، معبأً بشكل جيد، ومع جميع القطع. واجهتُ مشكلة بسيطة في التجميع، وكان فريق خدمة العملاء متعاونًا للغاية في تقديم التعليمات. كما وجدتُ طرق الاختبار المختلفة مفيدة للغاية. إجمالًا، كانت تجربة إيجابية للغاية!
